Demo: Learned Decision Regions on a Spiral

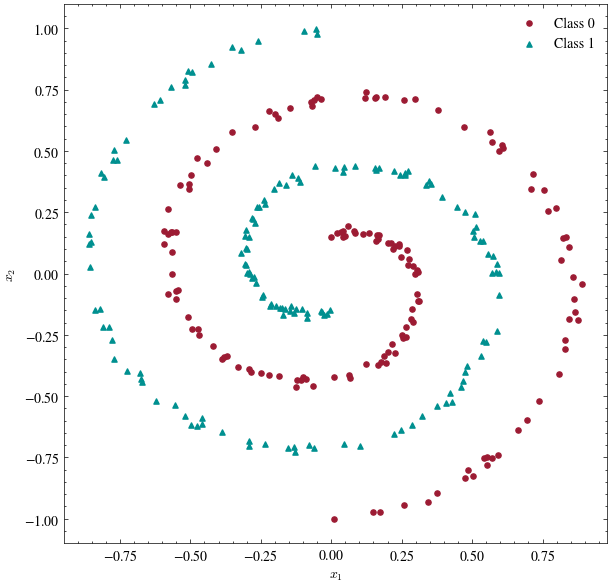

XOR was the smallest witness that linear models fail. Here is a harder one: two interleaved spirals, with no straight line anywhere close to separating them. We train the network from the reading, writing our own forward and backward pass, and watch the decision region bend to match.

import numpy as np
import matplotlib.pyplot as plt
import scienceplots
from matplotlib.colors import LinearSegmentedColormap

plt.style.use(["science", "no-latex"])
TEAL, CARDINAL = "#009090", "#9c1b33"
FIELD = LinearSegmentedColormap.from_list("field", ["#ffffff", "#7a7a7a"])  # background shading
rng = np.random.default_rng(11)

n_per_class, noise = 150, 0.15
X, y = [], []
for c in [0, 1]:
    r = np.linspace(0.15, 1.0, n_per_class)
    t = np.linspace(c * np.pi, c * np.pi + 3.0 * np.pi, n_per_class) + rng.normal(0, noise, n_per_class)
    X.append(np.column_stack([r * np.sin(t), r * np.cos(t)]))
    y.append(np.full(n_per_class, c))
X, y = np.vstack(X), np.concatenate(y)

fig, ax = plt.subplots(figsize=(7, 7))
ax.scatter(*X[y == 0].T, color=CARDINAL, s=14, label="Class 0")
ax.scatter(*X[y == 1].T, color=TEAL, s=14, marker="^", label="Class 1")
ax.set_xlabel("$x_1$")
ax.set_ylabel("$x_2$")
ax.legend(frameon=False)
plt.show()

Before adding anything new, run last lecture’s model on it: one linear score per class, softmax on top, cross-entropy loss, trained with the softmax - one_hot gradient we derived at the board. How far does a straight boundary get?

def softmax(Z):
    Z = Z - Z.max(axis=1, keepdims=True)
    E = np.exp(Z)
    return E / E.sum(axis=1, keepdims=True)

Y = np.zeros((len(y), 2))          # one-hot labels
Y[np.arange(len(y)), y] = 1

rng_linear = np.random.default_rng(1)
W = rng_linear.normal(0, 0.1, size=(2, 2))
b = np.zeros(2)
for epoch in range(4000):
    P = softmax(X @ W + b)
    dZ = (P - Y) / len(X)
    W -= 1.0 * (X.T @ dZ)
    b -= 1.0 * dZ.sum(0)

linear_accuracy = np.mean(softmax(X @ W + b)[:, 1].round() == y)
print(f"linear model, training accuracy: {linear_accuracy:.1%}")

linear model, training accuracy: 66.3%

Now insert one hidden layer of ReLU neurons between the input and the logits. The backward pass is the reading’s, line for line: softmax minus one-hot at the top, an outer product for each weight gradient, and the ReLU mask on the way down.

def train(hidden_dim, n_epochs=4000, alpha=1.0, seed=1):
    n, d, k = len(X), 2, 2
    rng2 = np.random.default_rng(seed)
    W1 = rng2.normal(0, np.sqrt(2 / d), size=(d, hidden_dim)); b1 = np.zeros(hidden_dim)
    W2 = rng2.normal(0, np.sqrt(2 / hidden_dim), size=(hidden_dim, k)); b2 = np.zeros(k)
    snapshots = {}
    for epoch in range(n_epochs + 1):
        Z1 = X @ W1 + b1
        H = np.maximum(0, Z1)
        P = softmax(H @ W2 + b2)
        if epoch in (0, n_epochs // 20, n_epochs // 4, n_epochs):
            snapshots[epoch] = (W1.copy(), b1.copy(), W2.copy(), b2.copy())
        dZ2 = (P - Y) / n
        dZ1 = (dZ2 @ W2.T) * (Z1 > 0)
        W2 -= alpha * (H.T @ dZ2); b2 -= alpha * dZ2.sum(0)
        W1 -= alpha * (X.T @ dZ1); b1 -= alpha * dZ1.sum(0)
    return snapshots

def predict(params, points):
    W1, b1, W2, b2 = params
    H = np.maximum(0, points @ W1 + b1)
    return softmax(H @ W2 + b2)[:, 1]

snapshots = train(hidden_dim=64)
trained = snapshots[max(snapshots)]
print("snapshots at epochs:", list(snapshots))
print(f"64 hidden neurons, training accuracy: {np.mean(predict(trained, X).round() == y):.1%}")

snapshots at epochs: [0, 200, 1000, 4000]
64 hidden neurons, training accuracy: 100.0%

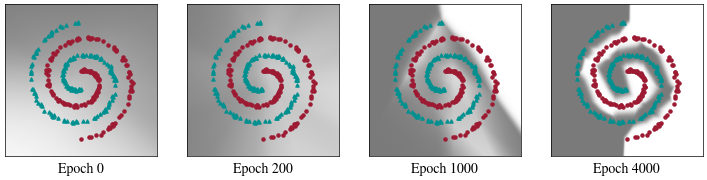

Plot the decision region at each snapshot: the background shading is the predicted probability of class \(1\), and the dots are the training data.

xx, yy = np.meshgrid(np.linspace(-1.3, 1.3, 200), np.linspace(-1.3, 1.3, 200))
grid = np.column_stack([xx.ravel(), yy.ravel()])

fig, axes = plt.subplots(1, 4, figsize=(9, 2.6))
for ax, epoch in zip(axes, snapshots):
    probs = predict(snapshots[epoch], grid).reshape(xx.shape)
    ax.imshow(probs, extent=[-1.3, 1.3, -1.3, 1.3], origin="lower", cmap=FIELD, vmin=0, vmax=1)
    ax.scatter(*X[y == 0].T, color=CARDINAL, s=5)
    ax.scatter(*X[y == 1].T, color=TEAL, s=5, marker="^")
    ax.set_xlabel(f"Epoch {epoch}")
    ax.set_xticks([]); ax.set_yticks([])
plt.show()

What if the network were narrower?

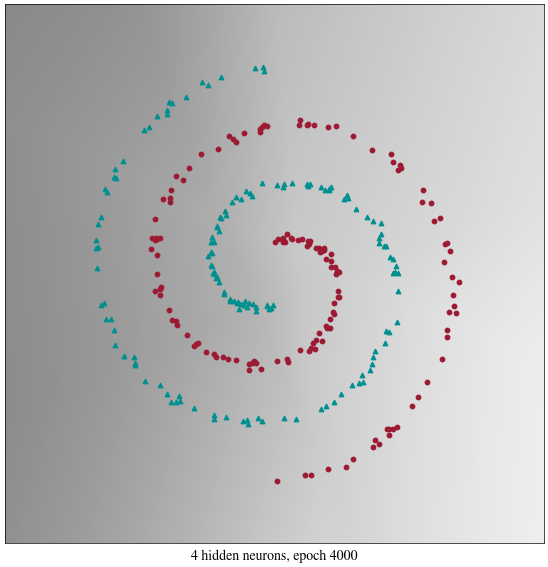

Sixty-four hidden neurons was generous. Try \(4\) below, barely more than XOR’s two, and compare the accuracy against the linear model’s.

hidden_dim = 4    # change me!

narrow = train(hidden_dim=hidden_dim)
params = narrow[max(narrow)]
probs = predict(params, grid).reshape(xx.shape)

fig, ax = plt.subplots(figsize=(7, 7))
ax.imshow(probs, extent=[-1.3, 1.3, -1.3, 1.3], origin="lower", cmap=FIELD, vmin=0, vmax=1)
ax.scatter(*X[y == 0].T, color=CARDINAL, s=10)
ax.scatter(*X[y == 1].T, color=TEAL, s=10, marker="^")
ax.set_xlabel(f"{hidden_dim} hidden neurons, epoch {max(narrow)}")
ax.set_xticks([]); ax.set_yticks([])
plt.show()

print(f"{hidden_dim} hidden neurons, training accuracy: {np.mean(predict(params, X).round() == y):.1%}")

4 hidden neurons, training accuracy: 66.0%

Punchline: the reading’s backpropagation equations, with nothing changed but the shapes of the matrices, bend a decision boundary all the way around a spiral: \(322\) parameters and \(100\%\) training accuracy where a straight line manages \(66\%\). Four hidden neurons run out of creases long before that and land exactly on the linear model’s accuracy, so it is the width doing the work rather than the training time. Next lecture asks how to train a network like this one when the dataset is far too large to compute a full gradient over all of it at once.
