A \(30\)-layer network, no training, just a single forward and backward pass, like the hand computation from the Neural Networks lecture but deep enough for the exponential in the reading’s bound to bite. We track two magnitudes at every layer, the activation standard deviation going forward and the gradient norm coming back, and we let torch.autograd produce the gradients instead of hand-deriving them, exactly as the Gradient Descent lecture previewed.
import numpy as npimport matplotlib.pyplot as pltimport scienceplotsimport torchplt.style.use(["science", "no-latex"])TEAL, CARDINAL, GRAY ="#009090", "#9c1b33", "#c9c9c9"torch.manual_seed(13)width, depth =128, 30def make_layers(depth, width, std): layers = []for _ inrange(depth): lin = torch.nn.Linear(width, width, bias=False)with torch.no_grad(): lin.weight.normal_(0, std) layers.append(lin)return layersdef run_plain(layers, x, activation): h = x acts = []for lin in layers: h = activation(lin(h)) h.retain_grad() acts.append(h) loss = h.pow(2).sum() loss.backward() act_stds = [a.detach().std().item() for a in acts] grad_norms = [a.grad.norm().item() for a in acts]return act_stds, grad_normsx = torch.randn(256, width)configs = [ ("Too small ($0.5/\\sqrt{n_{\\mathrm{in}}}$)", 0.5/ width **0.5, CARDINAL), ("Well-scaled ($1/\\sqrt{n_{\\mathrm{in}}}$)", 1.0/ width **0.5, TEAL), ("Too large ($3/\\sqrt{n_{\\mathrm{in}}}$)", 3.0/ width **0.5, "black"),]fig, axes = plt.subplots(1, 2, figsize=(9, 3.2))layer_idx = np.arange(1, depth +1)for label, std, color in configs: layers = make_layers(depth, width, std) act_stds, grad_norms = run_plain(layers, x.clone(), torch.tanh) axes[0].plot(layer_idx, act_stds, color=color, linewidth=1.5, label=label) axes[1].plot(layer_idx, grad_norms, color=color, linewidth=1.5, label=label) rho = (grad_norms[0] / grad_norms[-1]) ** (1/ (depth -1))print(f"std {std:.4f}: act std {act_stds[0]:8.3g} -> {act_stds[-1]:8.3g} | "f"grad {grad_norms[-1]:8.3g} (output) -> {grad_norms[0]:8.3g} (input) | rho = {rho:.2f}")axes[0].set_yscale("log"); axes[0].set_xlabel("Layer"); axes[0].set_ylabel("Activation std (log scale)")axes[1].set_yscale("log"); axes[1].set_xlabel("Layer"); axes[1].set_ylabel("Gradient norm (log scale)")axes[1].legend(frameon=False, fontsize=7, loc="lower right")plt.show()

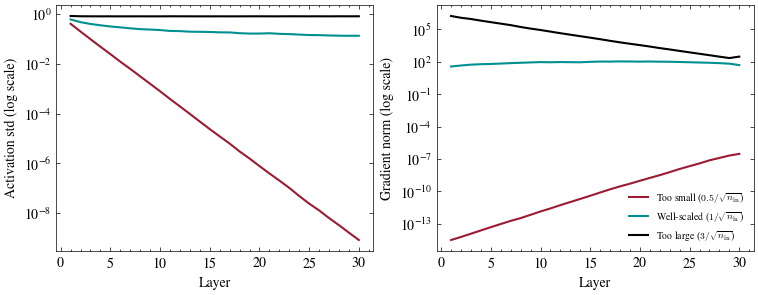

Three initialization scales, same depth, same input. On the left the forward signal: the too-small network’s activation standard deviation falls from \(0.42\) to \(8\times10^{-10}\), while the too-large one holds near \(0.85\) only because its \(\tanh\) units are saturated. On the right the gradient, running the other way: the too-small network’s falls from \(3\times 10^{-7}\) at the output to \(3\times 10^{-15}\) at the input, and the too-large network’s grows from \(3\times 10^{2}\) to \(2\times 10^{6}\) going the same direction. Each gradient curve is a straight line on the log axis, and its slope is the per-layer factor \(\rho\) from the reading’s bound: \(0.53\), \(0.99\), and \(1.35\).
Now fix the too-small network two different ways
Take the worst case above (too-small init) and compare three versions: no fix, residual connections, and layer normalization.
std_small =0.5/ width **0.5def run_residual(layers, x, activation): h = x acts = []for lin in layers: h = h + activation(lin(h)) h.retain_grad() acts.append(h) loss = h.pow(2).sum() loss.backward()return [a.detach().std().item() for a in acts], [a.grad.norm().item() for a in acts]def run_layernorm(layers, x, activation): ln = torch.nn.LayerNorm(width) h = x acts = []for lin in layers: h = ln(activation(lin(h))) h.retain_grad() acts.append(h) loss = h.pow(2).sum() loss.backward()return [a.detach().std().item() for a in acts], [a.grad.norm().item() for a in acts]torch.manual_seed(13)act_plain, grad_plain = run_plain(make_layers(depth, width, std_small), x.clone(), torch.tanh)torch.manual_seed(13)act_residual, grad_residual = run_residual(make_layers(depth, width, std_small), x.clone(), torch.tanh)torch.manual_seed(13)act_layernorm, grad_layernorm = run_layernorm(make_layers(depth, width, std_small), x.clone(), torch.tanh)runs = [ ("No fix", act_plain, grad_plain, CARDINAL), ("Residual connections", act_residual, grad_residual, TEAL), ("Layer normalization", act_layernorm, grad_layernorm, "black"),]fig, axes = plt.subplots(1, 2, figsize=(9, 3.2))layer_idx = np.arange(1, depth +1)for label, acts, grads, color in runs: axes[0].plot(layer_idx, acts, color=color, linewidth=1.5, label=label) axes[1].plot(layer_idx, grads, color=color, linewidth=1.5, label=label)axes[0].set_yscale("log"); axes[0].set_xlabel("Layer"); axes[0].set_ylabel("Activation std (log scale)")axes[0].legend(frameon=False, fontsize=7, loc="center left")axes[1].set_yscale("log"); axes[1].set_xlabel("Layer"); axes[1].set_ylabel("Gradient norm (log scale)")plt.show()for label, acts, grads, _ in runs:print(f"{label:22s} act std {acts[0]:8.3g} -> {acts[-1]:8.3g} | "f"grad {grads[-1]:8.3g} (output) -> {grads[0]:8.3g} (input)")

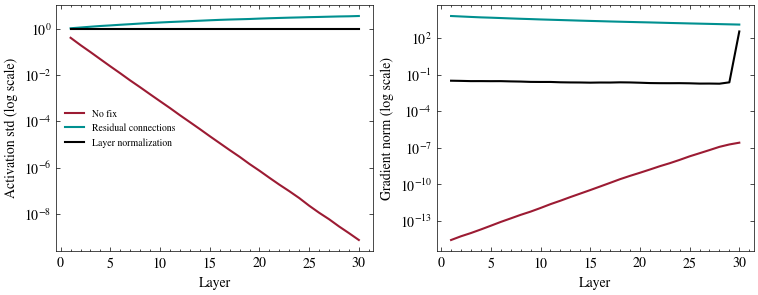

Both fixes rescue the same badly-initialized network, and the two panels show they do it differently. The residual stream (teal) lets the forward signal grow, from \(1.1\) to \(3.7\), because every block adds onto it; layer normalization (black) pins it at exactly \(1\) at every layer, which is all that normalizing means. On the gradient side, residual connections keep the absolute size large, between \(1\times 10^{3}\) and \(7\times 10^{3}\), on the strength of the identity path running the whole way through. Layer norm drops once at the output, where the loss is applied, and then holds a small but steady scale between \(1.9\times 10^{-2}\) and \(3.3\times 10^{-2}\) for every remaining layer. Different scales, same property: neither gradient curve decays with depth.
What if we went deeper still?
Try depth = 100 below and re-run to see how much worse the unfixed network gets, and whether the fix still holds up. At that depth the unfixed network’s loss underflows single precision to exactly zero, so the cell runs in double precision; that underflow is its own answer to the question.
depth_new =100# change me!# Double precision, because at depth 100 the unfixed loss underflows float32 to exactly 0.x2 = torch.randn(256, width).double()torch.manual_seed(13)_, g_plain = run_plain([l.double() for l in make_layers(depth_new, width, std_small)], x2.clone(), torch.tanh)torch.manual_seed(13)_, g_res = run_residual([l.double() for l in make_layers(depth_new, width, std_small)], x2.clone(), torch.tanh)fig, ax = plt.subplots(figsize=(7, 3))layer_idx = np.arange(1, depth_new +1)ax.plot(layer_idx, g_plain, color=CARDINAL, linewidth=1.4, label="No fix")ax.plot(layer_idx, g_res, color=TEAL, linewidth=1.4, label="Residual connections")ax.set_yscale("log")ax.set_xlabel("Layer")ax.set_ylabel("Gradient norm (log scale)")ax.legend(frameon=False, loc="center left")plt.show()

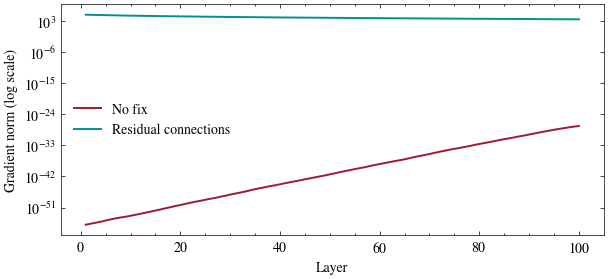

Punchline: every extra layer multiplies the unfixed network’s gradient by the same factor below \(1\), so the decay is exponential in depth exactly as the reading’s spectral-norm bound predicts, while the residual network’s identity path holds the gradient at a usable size however deep we go.
