Demo: Double Descent

The classical U-curve says that once a model has enough parameters to fit the training data exactly, adding more can only make things worse. Let’s put a dial on model size and check.

We fix \(n = 100\) training points and a true signal \(\mathbf{w}^*\) that lives in only the first \(d_0 = 20\) features; every other feature is pure noise, uncorrelated with the label. As the model is given more of those features (\(d\) growing from \(1\) to well past \(n\)), we refit the minimum-norm solution \(\hat{\mathbf{w}} = \mathbf{X}^+\mathbf{y}\) from scratch and score it on fresh data.

import numpy as np
import matplotlib.pyplot as plt
import scienceplots

plt.style.use(["science", "no-latex"])
TEAL, CARDINAL, GRAY = "#009090", "#9c1b33", "#c9c9c9"

n, d0, noise_std, d_max, n_test = 100, 20, 1.0, 400, 2000

def run_trial(seed, d):
    rng = np.random.default_rng(seed)
    w_star = np.zeros(d_max)
    w_star[:d0] = rng.normal(0, 1, size=d0)

    X_full = rng.normal(0, 1, size=(n, d_max))
    y = X_full[:, :d0] @ w_star[:d0] + rng.normal(0, noise_std, size=n)
    X_test_full = rng.normal(0, 1, size=(n_test, d_max))
    y_test = X_test_full[:, :d0] @ w_star[:d0] + rng.normal(0, noise_std, size=n_test)

    X, X_test = X_full[:, :d], X_test_full[:, :d]
    w_hat = np.linalg.pinv(X) @ y            # the minimum-norm solution
    return np.mean((X_test @ w_hat - y_test) ** 2)

print(f"n={n} training points, true signal in the first d0={d0} of d_max={d_max} available features")

n=100 training points, true signal in the first d0=20 of d_max=400 available features

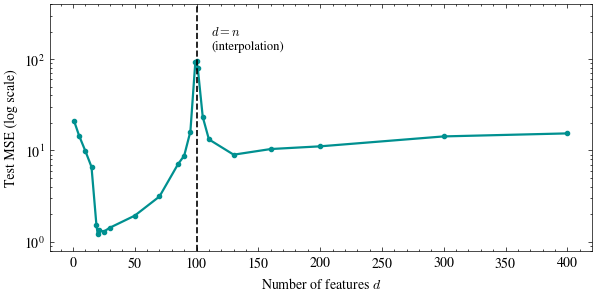

Sweep the number of features \(d\) from \(1\) to \(400\), four times the training set size, and take the median test error over 20 redraws of the data at each size.

ds = [1, 5, 10, 15, 19, 20, 21, 25, 30, 50, 70, 85, 90, 95, 99, 100, 101, 105, 110, 130, 160, 200, 300, 400]
n_trials = 20

medians = []
for d in ds:
    errs = [run_trial(seed * 13 + d, d) for seed in range(n_trials)]
    medians.append(np.median(errs))

fig, ax = plt.subplots(figsize=(7, 3.2))
ax.plot(ds, medians, color=TEAL, linewidth=1.6, marker="o", markersize=3)
ax.axvline(n, color="black", linestyle="--", linewidth=1.2)
ax.text(112, 130, "$d = n$\n(interpolation)", fontsize=9)
ax.set_yscale("log")
ax.set_ylim(0.8, 400)
ax.set_xlabel("Number of features $d$")
ax.set_ylabel("Test MSE (log scale)")
plt.show()

left = ds.index(100)
right = ds.index(101)
best_left = min(medians[:left])
peak = medians[left]
best_right = min(medians[right:])
print(f"best error before the threshold: {best_left:.2f} at d={ds[int(np.argmin(medians[:left]))]}")
print(f"error at d = n = {n}: {peak:.1f}  ({peak/best_left:.0f}x worse)")
print(f"best error past the threshold:  {best_right:.2f} at d={ds[right + int(np.argmin(medians[right:]))]}"
      f"  ({peak/best_right:.0f}x better than the peak)")

best error before the threshold: 1.22 at d=20
error at d = n = 100: 94.6  (77x worse)
best error past the threshold:  8.99 at d=130  (11x better than the peak)

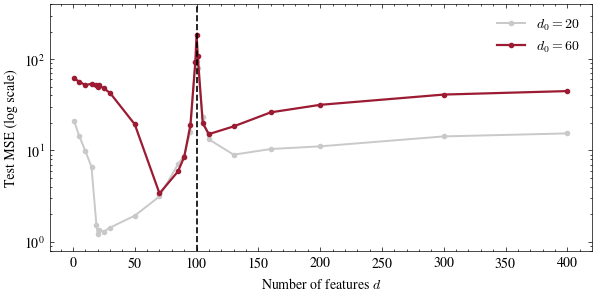

What if the true signal used more of the features?

Set d0 = 60 below, so three times as much of the label is real signal, and re-run the sweep. Does the spike move, shrink, or stay where it was?

d0 = 60    # change me!

medians_new = [np.median([run_trial(seed * 13 + d, d) for seed in range(n_trials)]) for d in ds]

fig, ax = plt.subplots(figsize=(7, 3.2))
ax.plot(ds, medians, color=GRAY, linewidth=1.4, marker="o", markersize=3, label="$d_0=20$")
ax.plot(ds, medians_new, color=CARDINAL, linewidth=1.6, marker="o", markersize=3, label=f"$d_0={d0}$")
ax.axvline(n, color="black", linestyle="--", linewidth=1.2)
ax.set_yscale("log")
ax.set_ylim(0.8, 400)
ax.set_xlabel("Number of features $d$")
ax.set_ylabel("Test MSE (log scale)")
ax.legend(frameon=False)
plt.show()

print(f"peak stays at d={ds[int(np.argmax(medians_new))]}, "
      f"and the error at d={d_max} rose from {medians[-1]:.1f} to {medians_new[-1]:.1f}")

peak stays at d=100, and the error at d=400 rose from 15.4 to 44.7

Punchline: the spike sits at \(d = n\) however much true signal is buried in the features, because it is fixed by the shape of the design matrix rather than by the difficulty of the problem. A richer signal lifts the whole curve, since \(n\) points can only pin down an \(n\)-dimensional slice of a \(\mathbf{w}^*\) that is spread over more coordinates. The classical U-curve describes the left half of this picture and stops at the dashed line.
